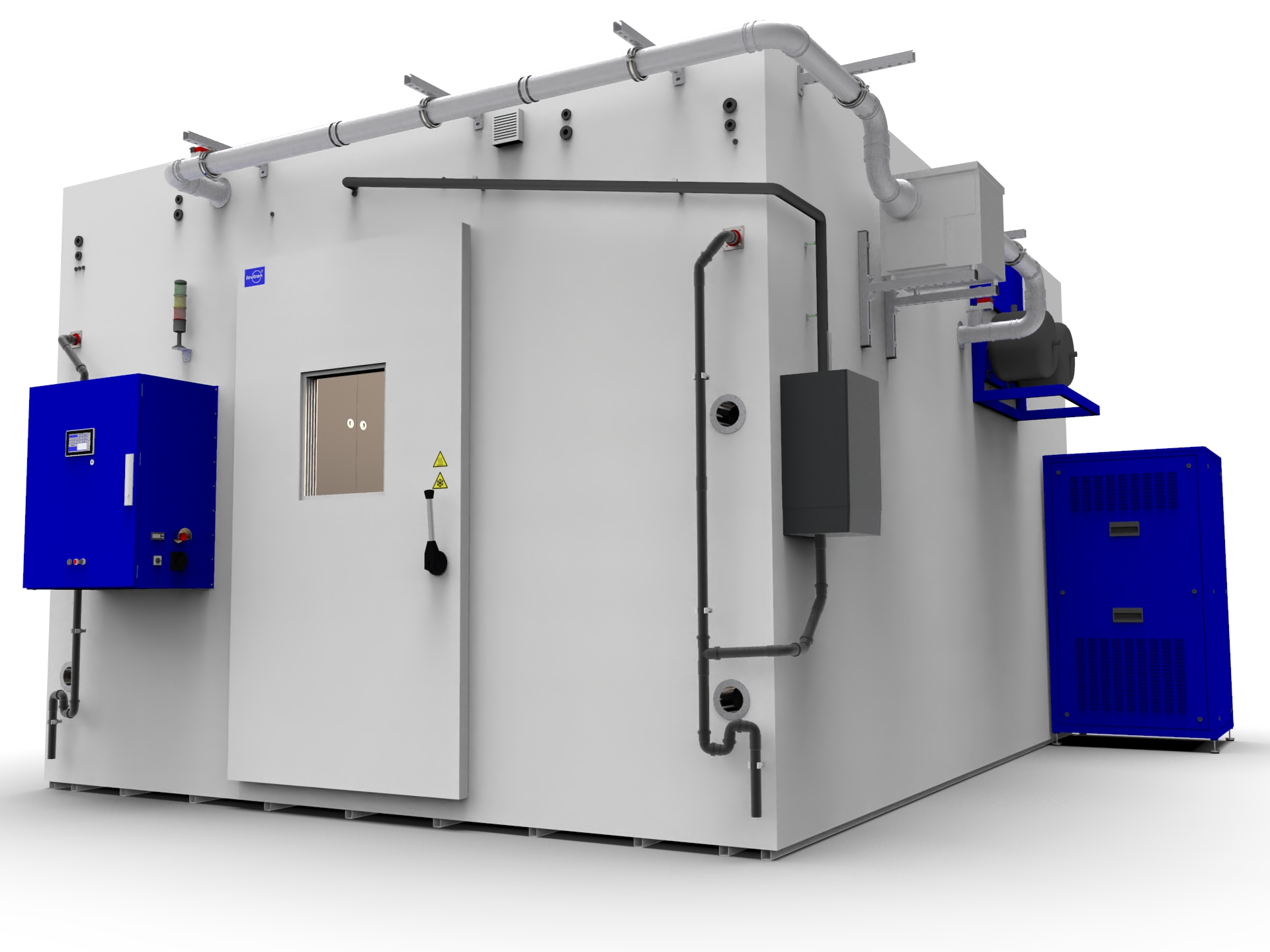

Our test cells are consistently implemented using a modular system. This design principle allows for precise customization of usable space size, geometry, and technical equipment to meet the respective testing requirements.

Thanks to the flexible modular design, test chambers can be precisely designed and manufactured in terms of dimensions, performance parameters, and functional integration to meet the individual requirements of the respective application area. Both standard applications and complex special solutions can be implemented efficiently and economically.

All test systems are custom-designed and can be extended for special applications, including:

  • Sun and rain simulation
  • High temperature change rates
  • Saltwater and corrosion tests
  • Integration of shaker systems
  • Thermal shock tests
  • Combinations with safety equipment according to Hazard Level 1–7

Thanks to our modular system approach, we guarantee maximum flexibility, future-proofing, and optimal adaptation to industry-specific testing standards.

We would be pleased to advise you personally and develop a customized solution that is precisely tailored to your technical requirements and operating conditions.

Size from 2000 L
Temperature range: -70 °C to 180 °C
Temperature constancy: +/- 0.3 to 1 K
Humidity range: 10 to 95% RH
Humidity constancy: +/- 3 to 5% RH

  • Feedthroughs in various dimensions
  • SUN, UVA, IR radiation systems
  • Viewing windows in doors or test cell side walls
  • Test cell doors in various sizes and designs
  • Modified floor loads
  • Access ramp
  • Ceiling hatches
  • Specially adapted air guidance systems
  • Fan speed control for adjusting air velocity

Further options and individual designs are available upon request

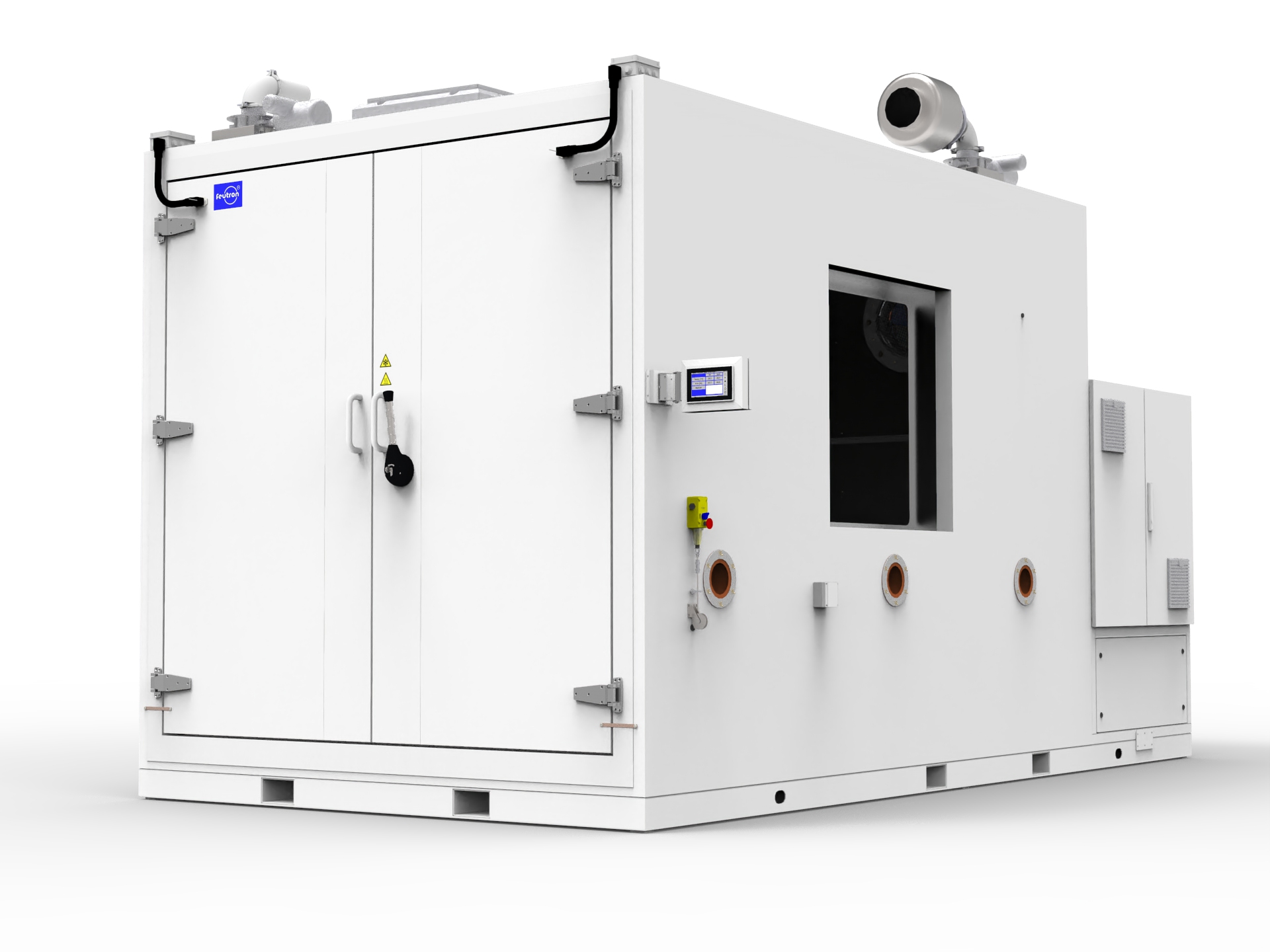

Double Test Cells

  • Investigation of the hygrothermal behavior of building materials under temperature and humidity stress (e.g., capillary conductivity, water vapor diffusion)
  • Building material samples can be introduced in various positions and subjected to different climatic conditions
  • Long-term tests
  • Determination of thermal resistance and thermal transmittance (U-value)

Test chamber volume up to 10000 L
Temperature range: -30°C to +100°C
Humidity range: 10% to 95% RH

  • Additional dryer for low dew points
  • Fog systems for relative humidities up to 100%
  • Rain simulation
  • SUN, UVA, IR radiation systems

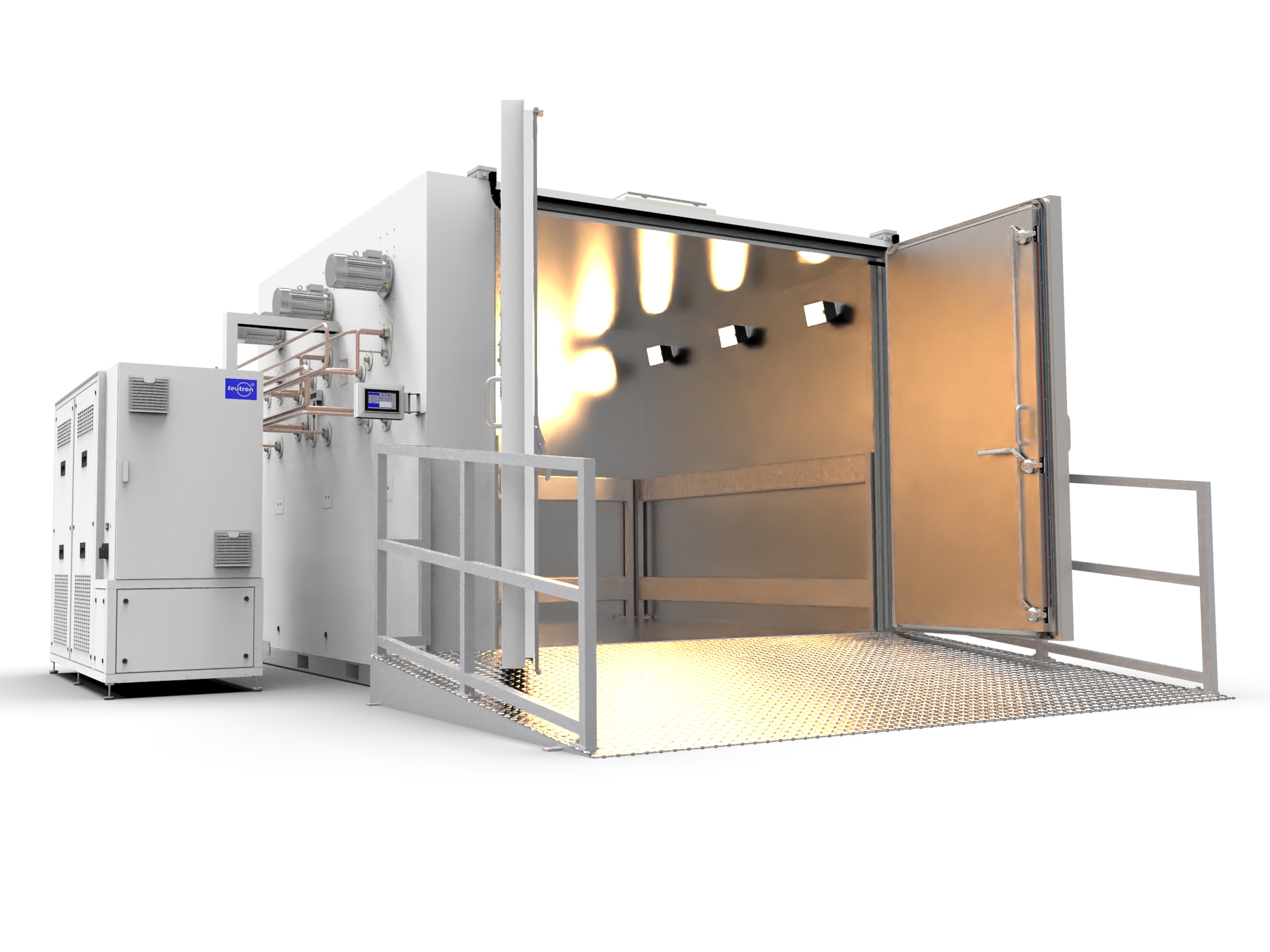

Fog Storage Cells

Loading of test setups with relative humidities up to 100% as a fog storage phase; the test cell floor is designed as a sealed welded tray.

Test chamber volume: 2000 L to 20000 L
Temperature: +40°C to +60°C
Humidity: 100% RH / saturation, fog

  • Adapted shelving systems with high loads
  • Walkable gratings with different loads

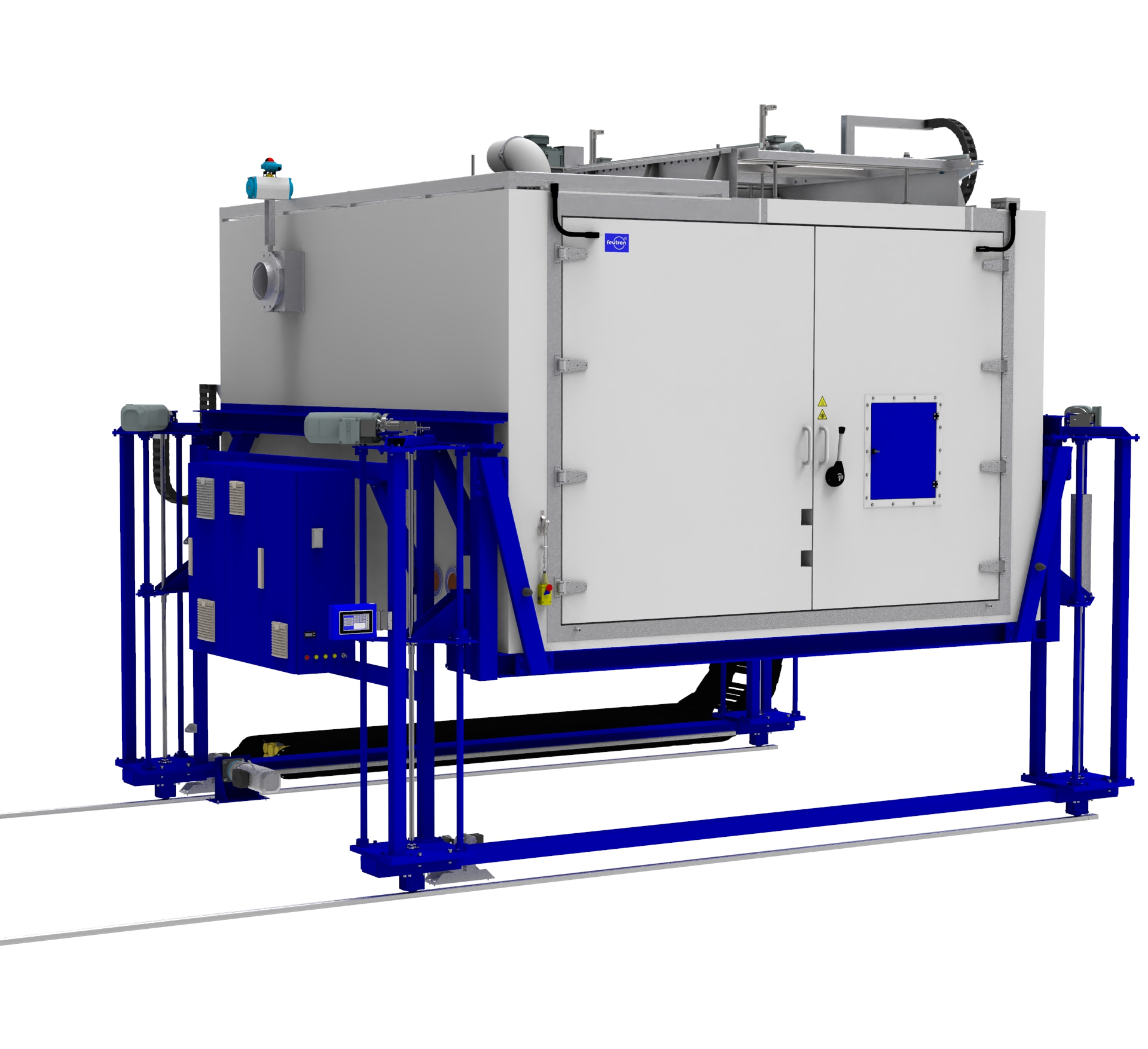

Test Cells for Shaker Applications

Test cells with various floor cutouts and compensators for adaptation to the respective shaker system.

Height and side adjustable systems.

Temperature range: -70 °C to 180 °C
Temperature constancy: +/- 0.3 to 1 K
Humidity range: 10 to 95% RH
Humidity constancy: +/- 3 to 5% RH

Further options and individual designs are available upon request

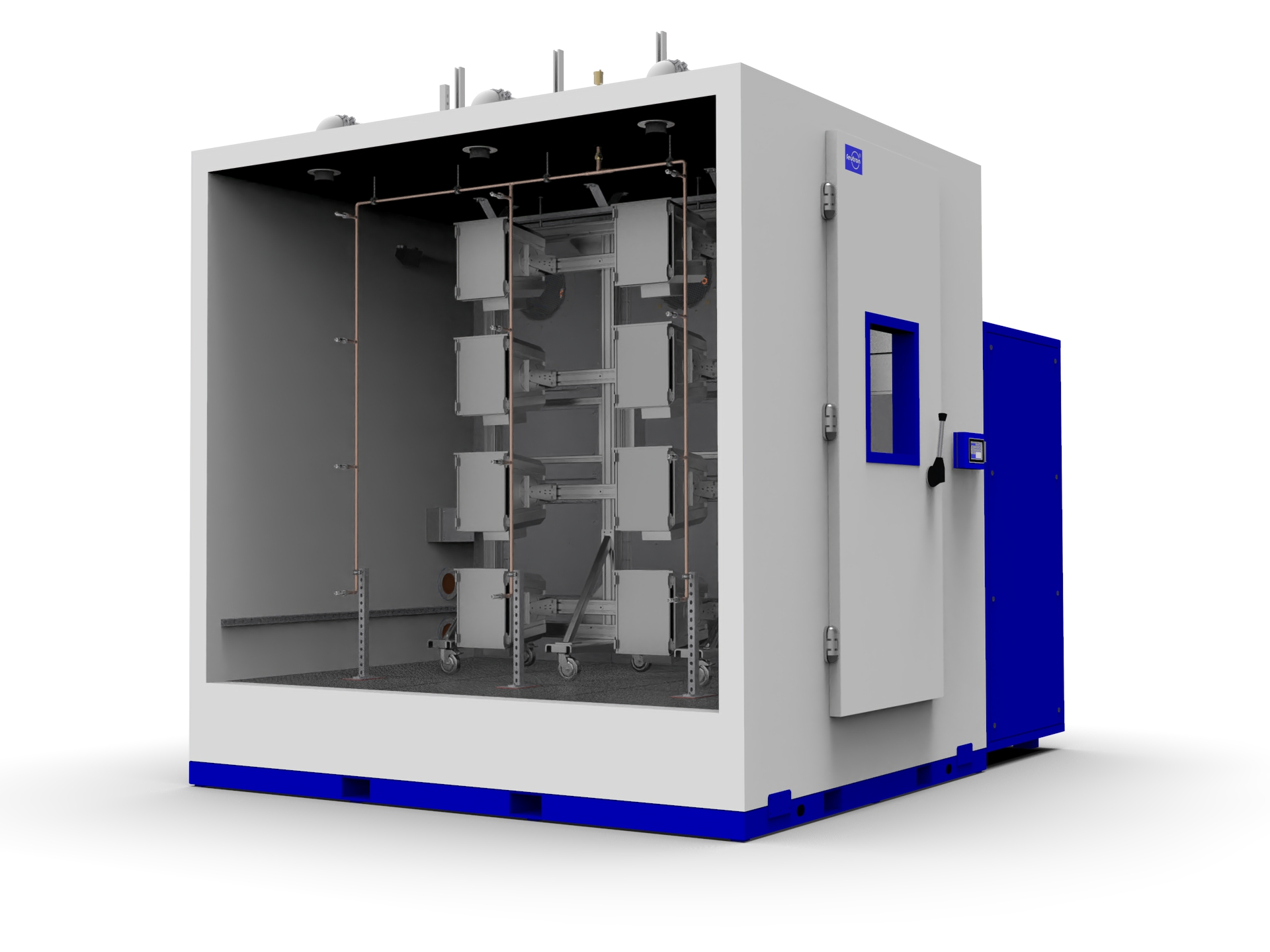

Weathering Cells

Test cells with an open side wall for adapting on-site facade modules.
The specially adapted air guidance system enables temperature control/air conditioning of the facade module.
A nozzle system ensures uniform rain simulation on the entire facade module.
Furthermore, the facade modules can be irradiated with SUN, UVA, IR systems.

  • Test cell geometry adapted to facade module sizes
  • Temperature range: -40°C to +85°C
  • Humidity range: 10% to 95% RH

  • Different rail systems for moving the test cell or facade modules
  • Different feedthroughs
  • Rainwater temperature control

Further options and individual designs are available upon request

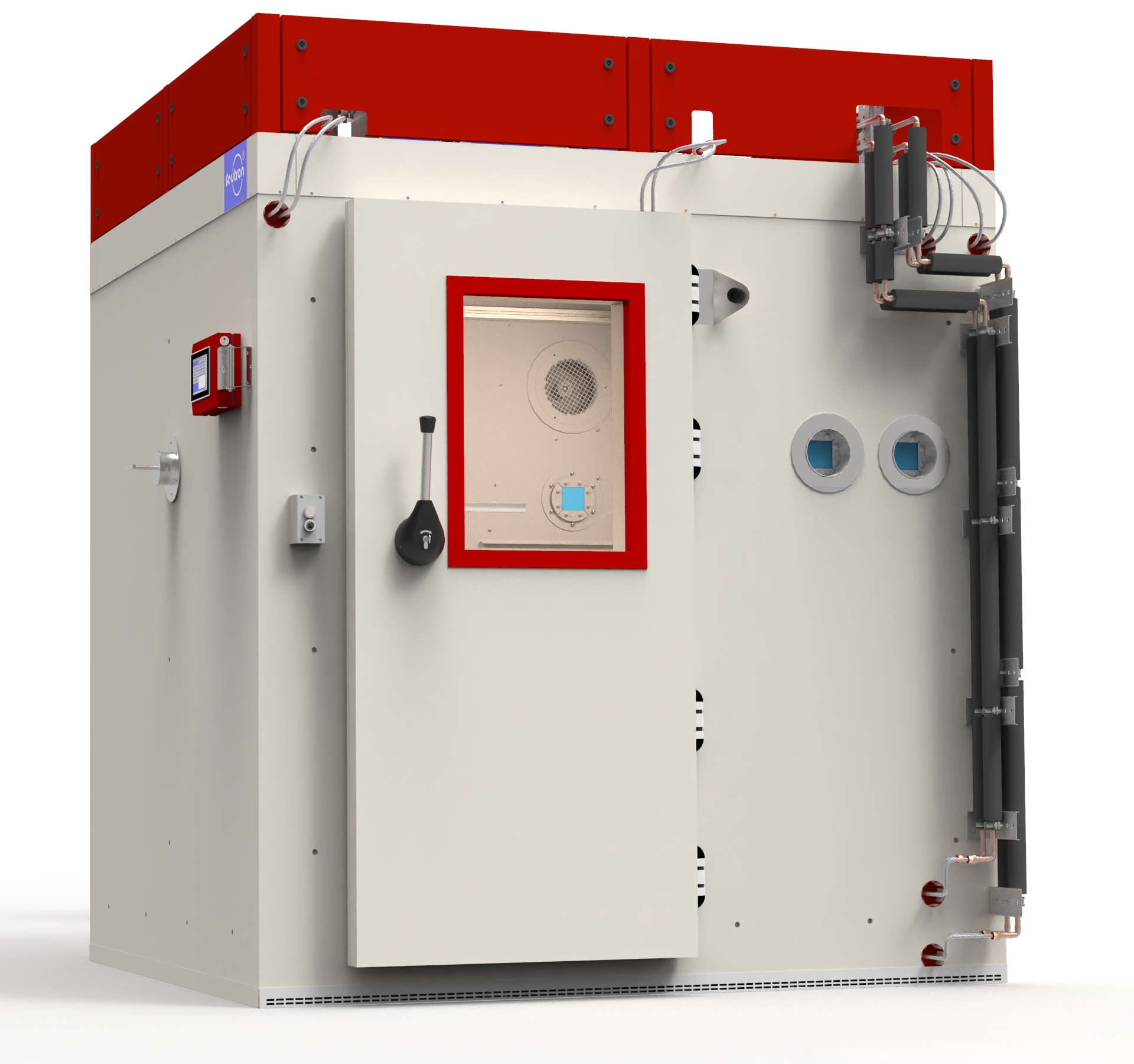

Emission Cells

Gas-tight test cell systems with temperature control systems specially designed for emission tests, speed-controlled fan units, and suitable seals and sealing materials.

Temperature range: +5°C to +60°C
Humidity range: 10% to 95% RH

Due to the complexity, we would be happy to advise you on this system.
